PERFORMANCE
Equipped with the powerful yet economical Hino N04C engine range, the Hino 300 Series’ performance is maximized at every turn, making it a trusted business partner. It does not only meet the Euro 4 emission standards, but also deliver an ideal combination of power and efficiency.
COMFORT
Intuitively designed, roomy, and comfortable, the cab space of the Hino 300 Series gives drivers what they need to perform at their best.
Loaded with features to make every drive enjoyable, select models under this truck range are equipped with true automatic transmission, power door and window,
cab air-conditioning, improved meter cluster, various storage spaces, and many other amenities that make driving easier.
SAFETY
Safety is always a priority at Hino. With a comprehensive suite of complementing passive and active safety systems, the Hino 300 Series features an enhanced
braking performance with Anti-lock Brake System (ABS) and SRS Airbag for added protection of drivers.
STYLISH AND FUNCTIONAL
The aerodynamic design of the Hino 300 Series’ cab contributes to fuel economy, while the tilt cabin enhances efficiency and reduces downtime by allowing
convenient access to maintenance and routine inspections.
The Hino 300 Series also features an elegant chrome front grille. The 616 model is equipped with LED headlights and fog lights for additional safety and visibility
when driving at night and when raining.
STYLISH AND FUNCTIONAL
The aerodynamic design of the Hino 300 Series’ cab contributes to fuel economy, while the tilt cabin enhances efficiency and reduces downtime by allowing convenient access to maintenance and routine inspections.
The Hino 300 Series also features an elegant chrome front grille. The 616 model is equipped with LED headlights and fog lights for additional safety and visibility when driving at night and when raining.
The Hino 300 Series is a robust light-duty truck, meticulously engineered inside and out to deliver exceptional quality, reliability, and performance—driving lasting success for your business.
300 SERIES SPECIFICATIONS
| MODEL | AXLES | GVW | Ps | Nm | WHELLBASE | TRANSMISSION | PDF File |
|---|---|---|---|---|---|---|
| 414i | 4 x 2 (4W) | 4,490 | 136 | 141.5 | 2,530 | 5-Speed M/T with Overdrive | Download Brochure |
| 414i Long | 4 x 2 (4W) | 4,490 | 136 | 141.5 | 3,405 | 5-Speed M/T with Overdrive | Download Brochure |
| 814i | 4 x 2 (6W) | 7,500 | 136 | 141.5 | 3,380 | 5-Speed M/T with Overdrive | Download Brochure |
| 514 auto | 4 x 2 (4W) | 4,490 | 136 | 139 | 2,525 | 6-Speed A/T with Overdrive | Download Brochure |
| 514 | 4 x 2 (4W) | 4,490 | 136 | 139 | 2,525 | 5-Speed M/T with Overdrive | Download Brochure |
| 616 | 4 x 2 (6W) | 4,490 | 150 | 156 | 3,430 | 6-Speed M/T with Overdrive | Download Brochure |
| 716 Double | 4 x 2 (6W) | 6,500 | 150 | 156 | 3,870 | 6-Speed M/T with Overdrive | Download Brochure |
| 916 | 4 x 2 (6W) | 8,500 | 150 | 156 | 4,200 | 6-Speed M/T with Overdrive | Download Brochure |
300 Series
The Hino 300 Series is a robust light-duty truck, meticulously engineered inside and out to deliver exceptional quality, reliability,
and performance—driving lasting success for your business.
SPECIFICATION
MODEL
Model Code
Drive System
ENGINE
Max. Output PS | rpm
Max. Torque N.m | rpm
DIMENSION
Wheelbase (mm)
Length (mm)
Width (mm)
Height (mm)
Gross Vehicle Weight (kg)
TRANSMISSION
Type

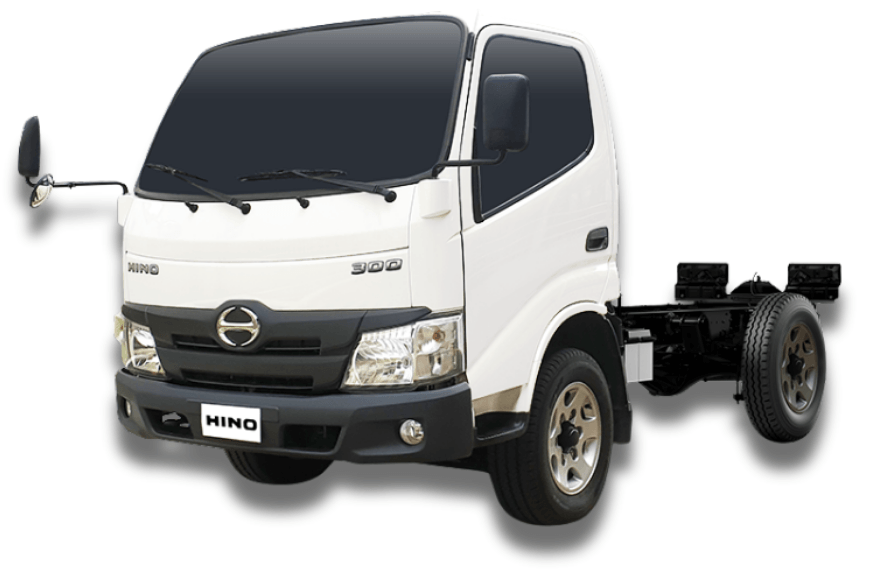

414i
XZU309LN
4 x 2 (4W)
136 | 141.5
390 | 400
2,530
5,075
1,715
2,115
4,490
5-Speed M/T with Overdrive

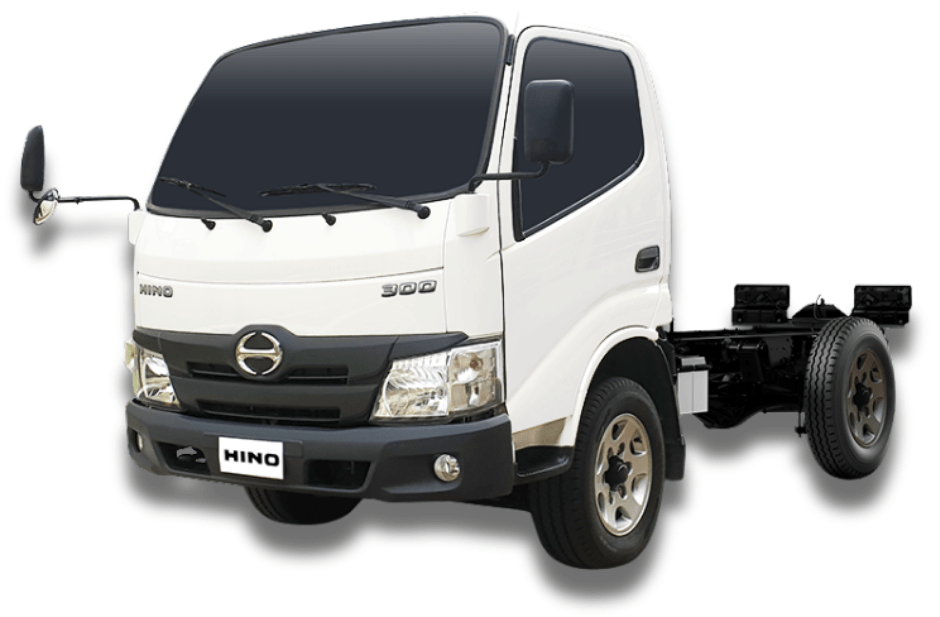

414i Long
XZU349LN
4 x 2 (4W)
136 | 141.5
390 | 400
3,405
6,430
1,715
2,115
4,490
5-Speed M/T with Overdrive

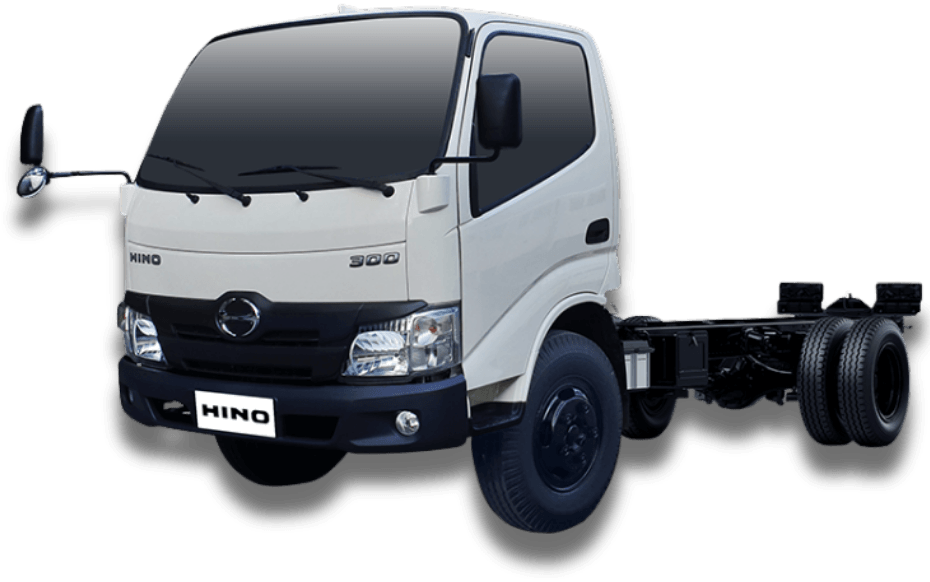

414i 6W
XZU349LM
4 x 2 (6W)
136 | 141.5
390 | 400
3,380
6,332
1,965
2,115
4,490
5-Speed M/T with Overdrive

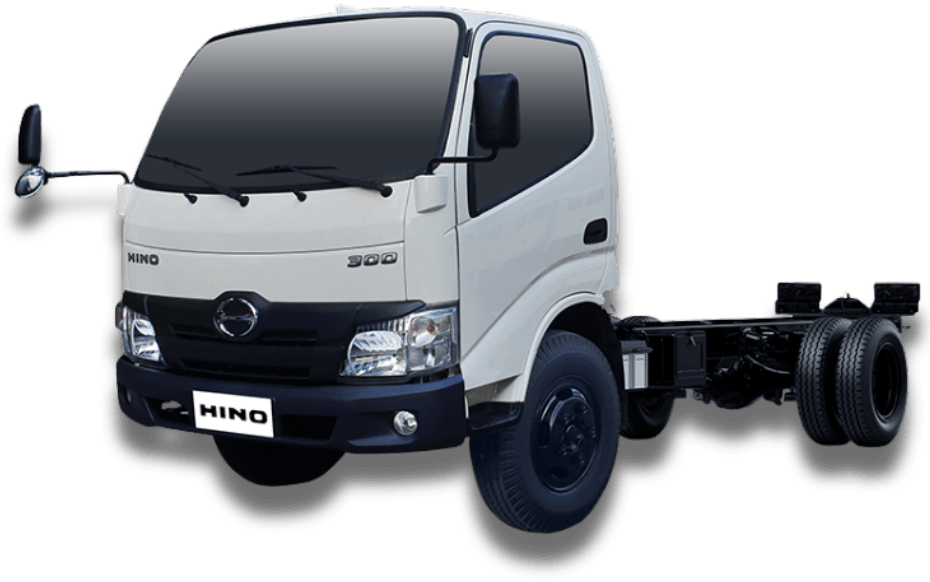

814i
XZU349LH
4 x 2 (6W)
136 | 141.5
390 | 400
3,380
6,332
1,965
2,115
7,500
5-Speed M/T with Overdrive

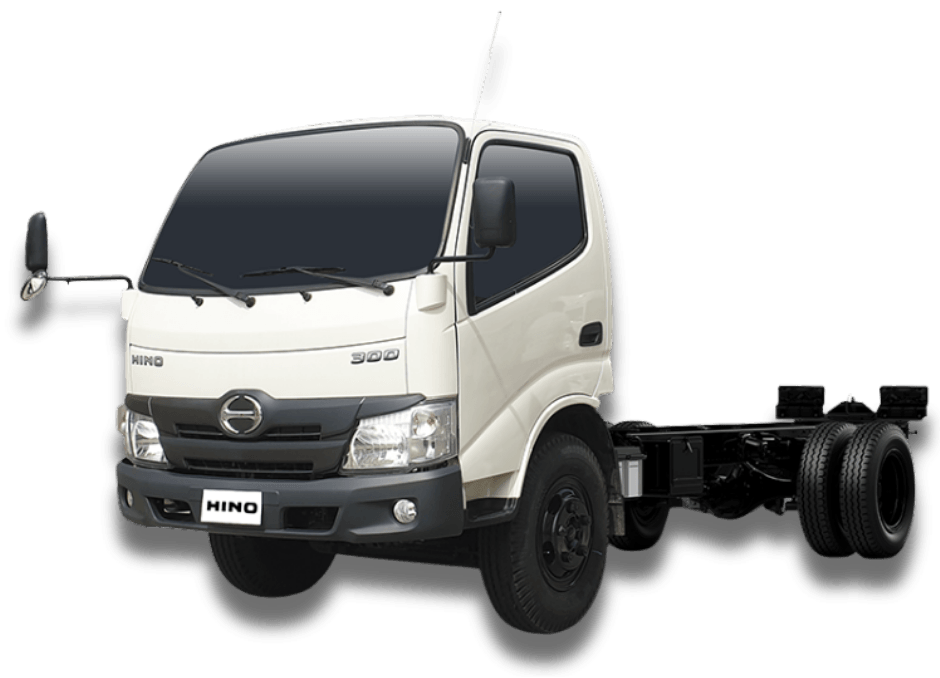

814i Extra Long
XZU359LE
4 x 2 (6W)
136 | 141.5
390 | 400
4,000
7,185
1,965
2,150
7,500
5-Speed M/T with Overdrive

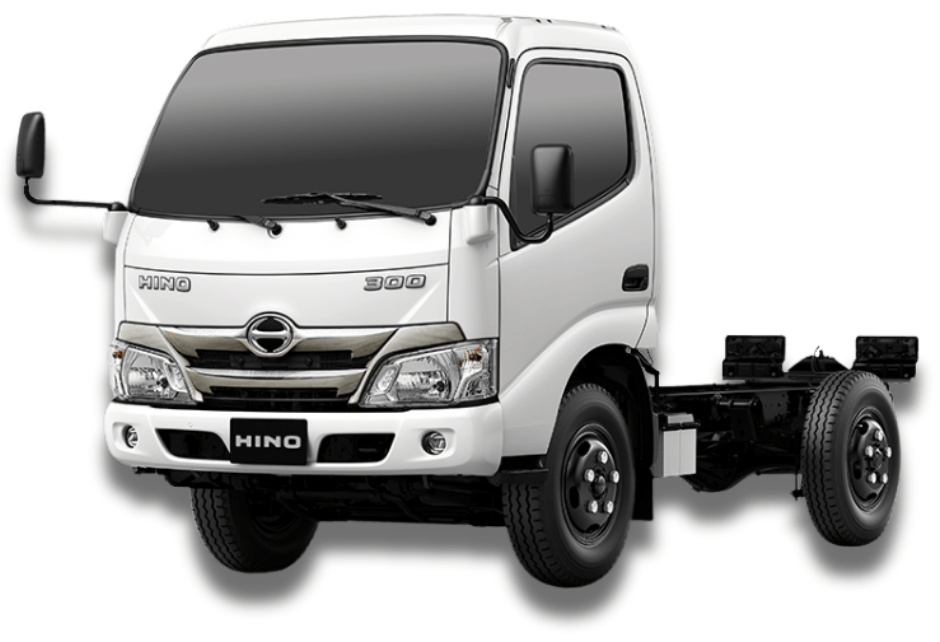

514 Auto
XZU600LA
4 x 2 (4W)
136 | 139
390 | 394
2,525
4,680
1,695
2,130
4,490
6-Speed A/T with Overdrive

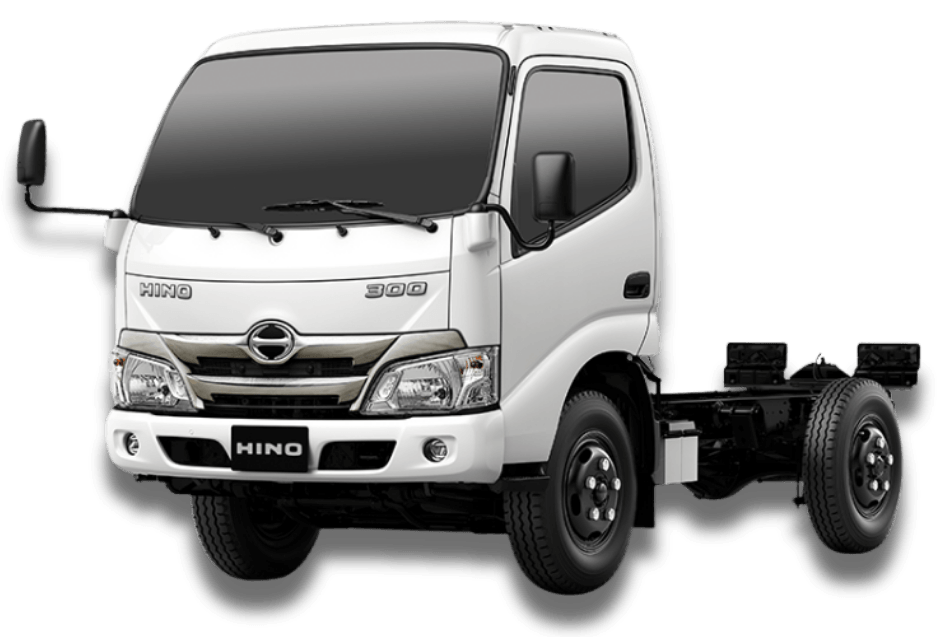

514
XZU600LM
4 x 2 (4W)
136 | 139
390 | 394
2,525
4,680
1,695
2,130
4,490
5-Speed M/T with Overdrive

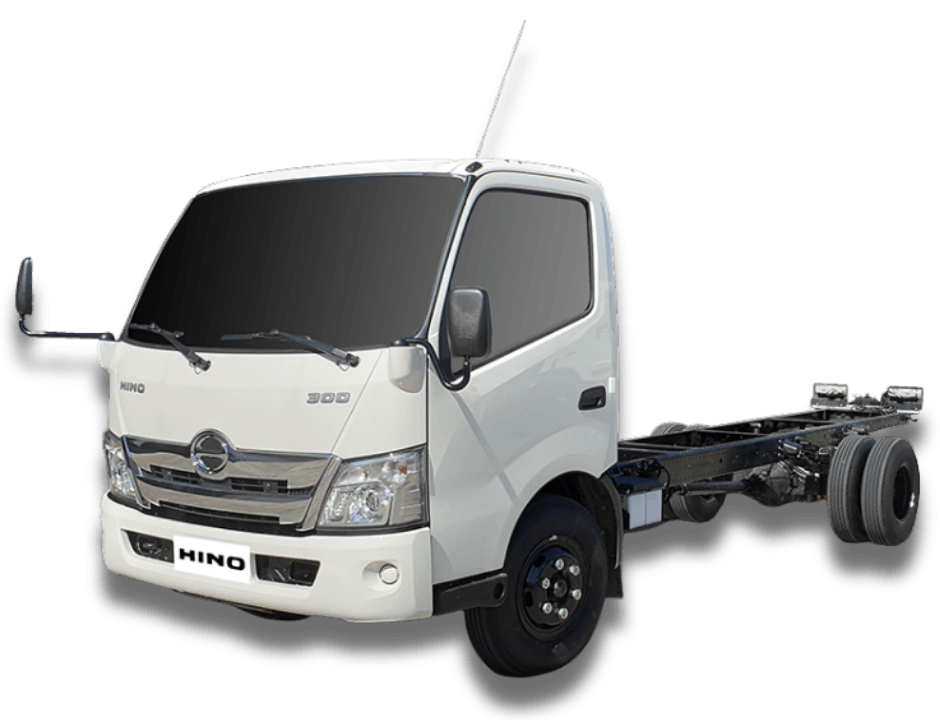

616
XZU710LN
4 x 2 (6W)
150 | 156
420 | 430
3,430
6,120
1,995
2,205
4,490
6-Speed M/T with Overdrive

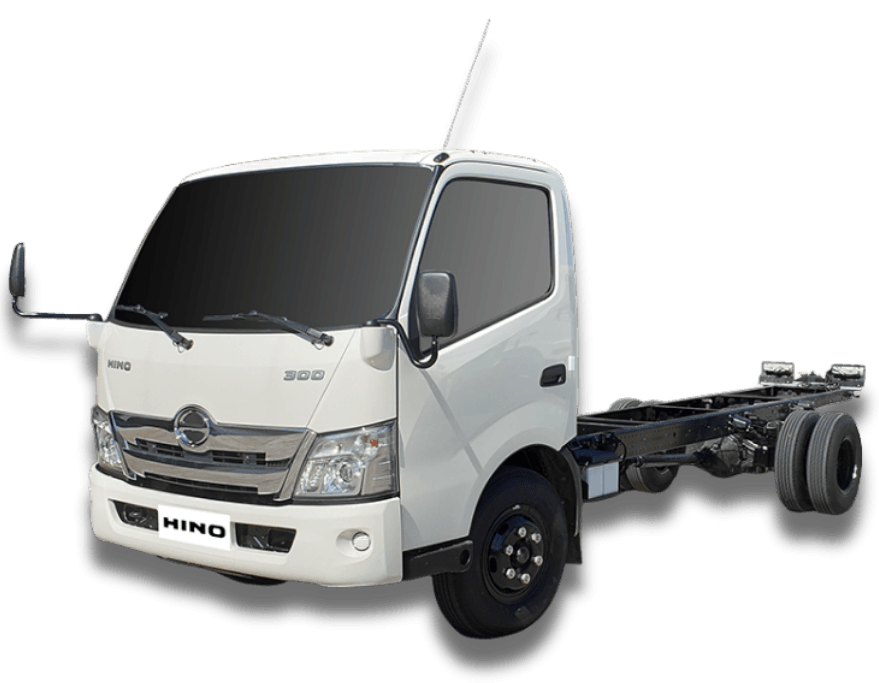

716
XZU710LT
4 x 2 (6W)
150 | 156
420 | 430
3,430
6,120
1,995
2,240
6,500
6-Speed M/T with Overdrive

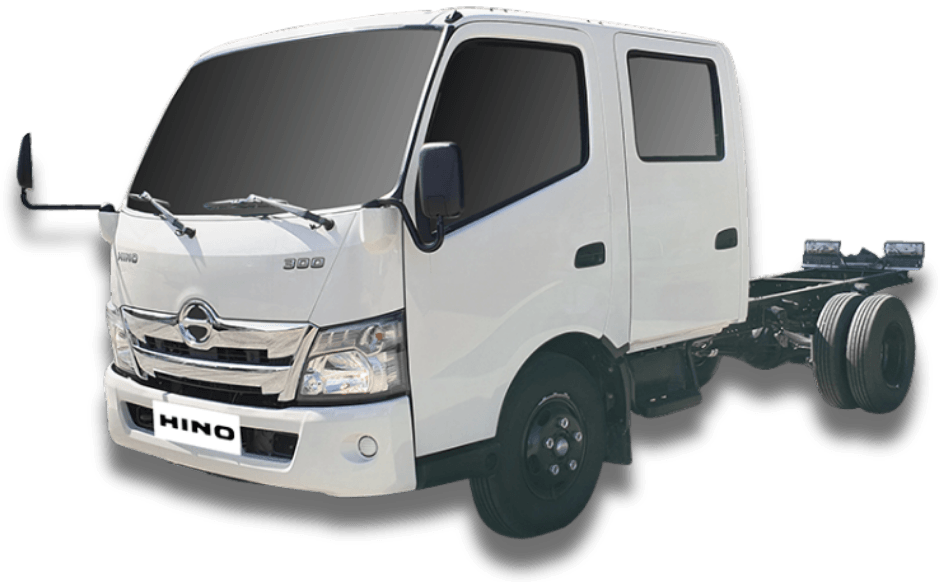

716 Double
XZU720LD
4 x 2 (6W)
150 | 156
420 | 430
3,870
6,740
1,995
2,255
6,500
6-Speed M/T with Overdrive

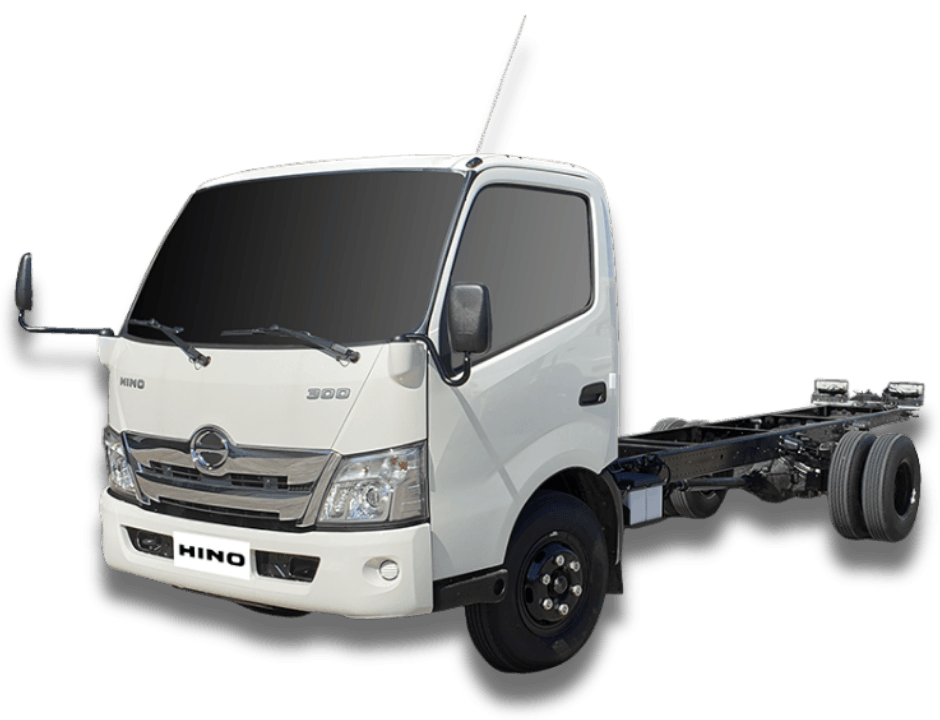

916
XZU730LN
4 x 2 (6W)
150 | 156
420 | 430
4,200
7,250
2,055
2,260
8,500
6-Speed M/T with Overdrive
