DRIVING PERFORMANCE
Talking about durability, reliability, and optimal driving performance, it has to be the Hino 500 Series! This line is designed to get the job done even under the harshest operating conditions.
Equipped with Variable Nozzle Turbo Charger (VNT), the Hino 500 Series guarantees optimal torque and power without engine strain. Acceleration is also improved, including an overall cleaner combustion.
The exterior of the Hino 500 Series has also been redesigned for a bolder and more commanding appearance with enhanced aerodynamics.
DRIVING PERFORMANCE
Talking about durability, reliability, and optimal driving performance, it has to be the Hino 500 Series! This line is designed to get the job done even under the harshest operating conditions.
Equipped with Variable Nozzle Turbo Charger (VNT), the Hino 500 Series guarantees optimal torque and power without engine strain. Acceleration is also improved, including an overall cleaner combustion.
The exterior of the Hino 500 Series has also been redesigned for a bolder and more commanding appearance with enhanced aerodynamics.
DURABILITY AND RELIABILITY
The Hino 500 Series’ robust chassis allows for smooth and confident cargo transport. Designed for stability, the Hino 500 Series’ tapered leaf suspension is effective for driving at optimum loading even on the most unforgiving terrain. Its larger spring design also enhances durability.
EASE OF OPERATION
The concept keyword for the driver’s space is “Roundish and Flat Space Interior.” The top edge of the instrument panel is designed low to keep good front visibility. Switches used while driving are all laid out for easy viewing and operation.
A semi-float (rubber type) construction was adopted for the cab mount and mounting bushes were added. Road vibrations are reduced, providing better ride comfort and reducing cabin noise.
The 1927 Auto model also features a fully automatic transmission, for effortless operability. Helping drivers run longer miles safely, with much less physical fatigue.
SAFETY
The Hino 500 Series continues to raise the bar when it comes to safety. Headlights are thoughtfully positioned to achieve a larger and brighter coverage for night-driving. Visibility is further optimized not only with its large wing mirrors, but also the greater downward view of its wide windscreen.
The Anti-Lock Brake System (ABS) gives drivers greater peace of mind especially on wet driving conditions. On the other hand, the adoption of the full-air brake system on select models enhances braking response and performance.
HINO 500 Series
The Hino 500 Series delivers exceptional performance through its durable engineering and high-powered engines, providing unmatched reliability and optimal load capacity to support your business operations.
SPECIFICATIONS
| MODEL | AXLES | GVW | Ps | Nm | WHELLBASE | TRANSMISSION | PDF File |
|---|---|---|---|---|---|---|
| 1021 | 4 x 2 (6W) | 10,400 | 210 | 215 | 4,990 | 6-Speed M/T with Overdrive | Download Brochure |
| 1625 | 4 x 2 (6W) | 16,000 | 240 | 245 | 4,330 | 6-Speed M/T with Overdrive | Download Brochure |
| 1625 Long | 4 x 2 (6W) | 16,000 | 240 | 245 | 5,530 | 6-Speed M/T with Overdrive | Download Brochure |
| 1927 Auto | 4 x 2 (6W) | 18,200 | 260 | 265 | 5,080 | 6-Speed A/T with Overdrive | Download Brochure |
| 2629 6x2 | 6 x 4 (10W) | 26,000 | 285 | 2,500 | 6,130 + 1,350 | 9-Speed M/T, Direct-drive | Download Brochure |
| 2629 6x4 | 6 x 4 (10W) | 28,000 | 280 | 285 | 4,630 + 1,350 | 9-Speed M/T, Direct-drive | Download Brochure |
| 2836 | 6 x 4 (10W) | 28,000 | 280 | 285 | 4,530 + 1,350 | 9-Speed M/T with Overdrive | Download Brochure |
| 2836 Dump | 6 x 4 (10W) | 28,000 | 280 | 285 | 3,480 + 1,350 | 9-Speed M/T with Overdrive | Download Brochure |
| 1735 Tractor | 4 x 2 (6W) | 32,000 | 360 | 1,800 | 3,630 | 9-Speed M/T with Overdrive | Download Brochure |
| 2836 Tractor | 6 x 4 (10W) | 50,500 | 360 | 1,800 | 3,480 + 1,350 | 9-Speed M/T with Overdrive | Download Brochure |
HINO 500 Series
The Hino 500 Series delivers exceptional performance through its durable engineering and high-powered engines, providing unmatched reliability and optimal load capacity to support your business operations.
SPECIFICATION
MODEL
Model Code
Drive System
ENGINE
Max. Output PS | rpm
Max. Torque N. m | rpm
DIMENSION
Wheelbase (mm)
Length (mm)
Width (mm)
Height (mm)
Gross Vehicle Weight (kg)
TRANSMISSION
Type

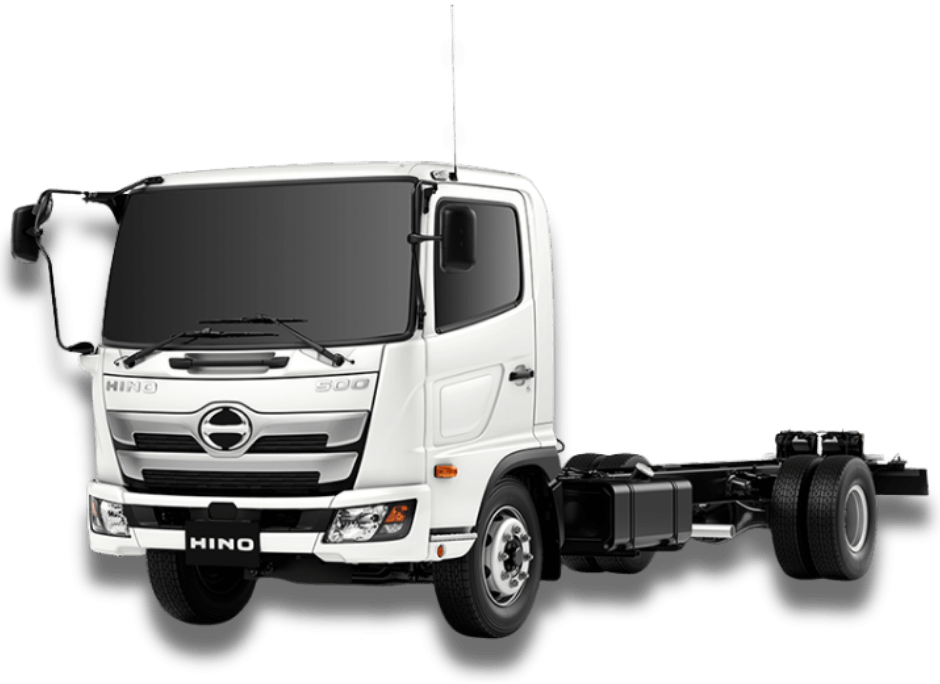

1021
FC9JL7A
4 x 2 (6W)
215 | 2,500
642 | 1,500
4,990
8,395
2,190
2,470
10,400
6-Speed M/T with Overdrive

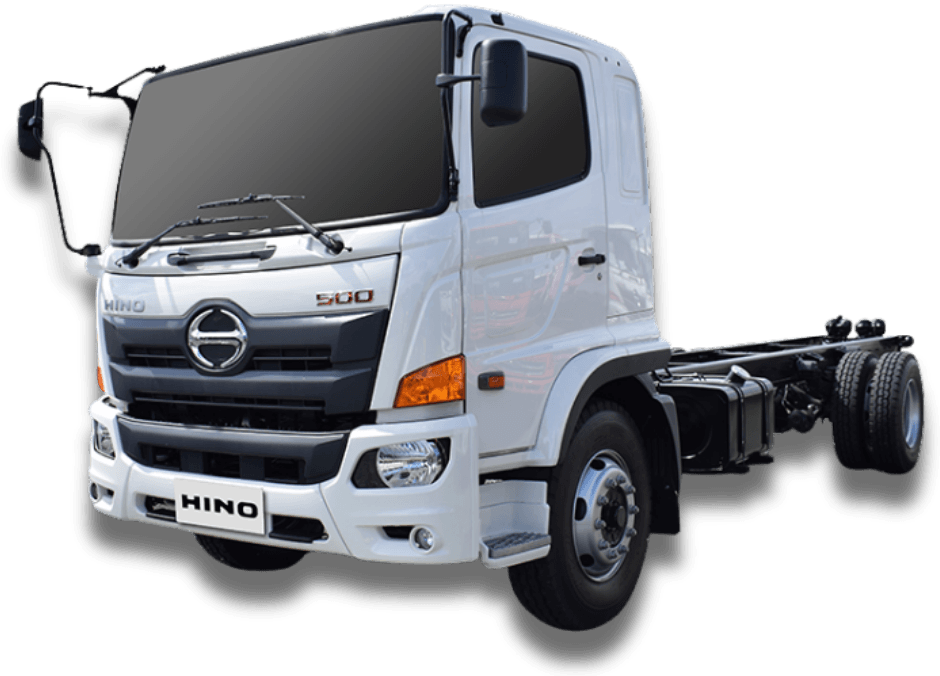

1625
FG8JJ7A
4 x 2 (6W)
245 | 2,500
726 | 1,500
4,330
7,785
2,490
2,750
16,000
6-Speed M/T with Overdrive
1625 Long
FG8JP7A
4 x 2 (6W)
245 | 2,500
726 | 1,500
5,530
9,485
2,490
2,745
16,000
6-Speed M/T with Overdrive

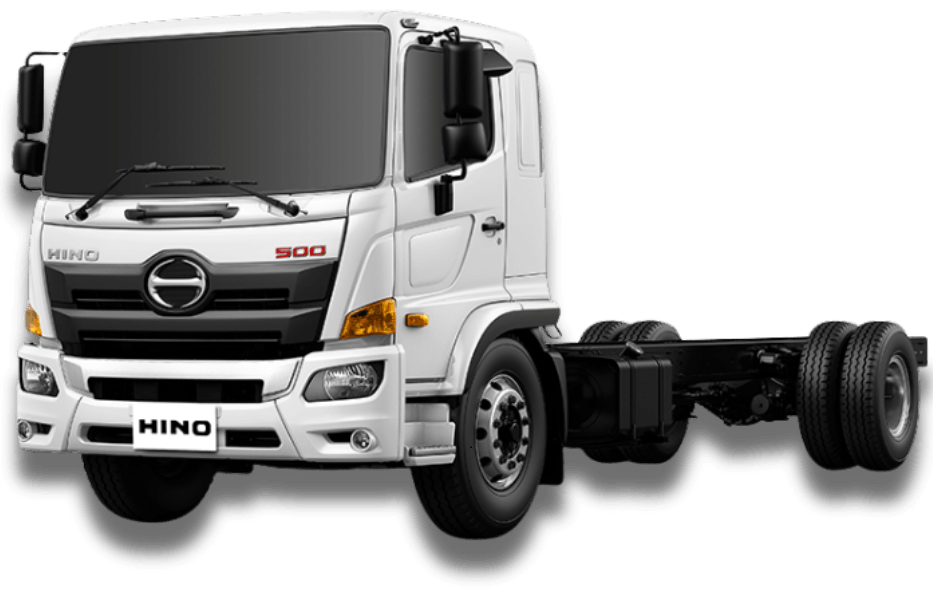

1927 Auto
GH8JM7A
4 x 2 (6W)
260| 265
794| 804
5,080
8,835
2,490
2,765
18,200
6-Speed A/T with Overdrive

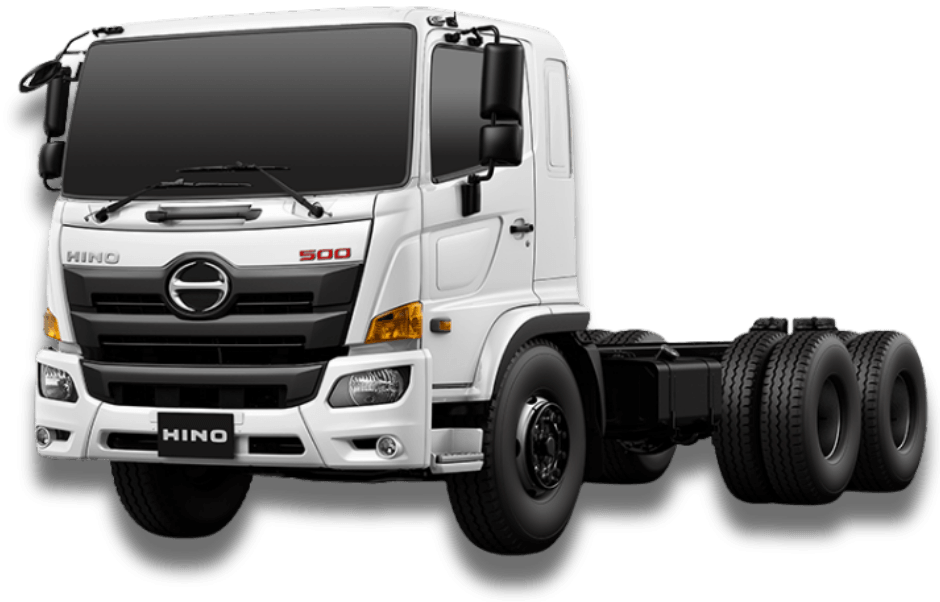

2629 6x2
FL8JW7A
6 x 4 (10W)
285 2,500
834 1,500
6,130 + 1,350
11,935
2,490
2,755
26,000
9-Speed M/T, Direct-drive
SPECIFICATION
MODEL
Model Code
Drive System
ENGINE
Max. Output PS | rpm
Max. Torque N. m | rpm
DIMENSION
Wheelbase (mm)
Length (mm)
Width (mm)
Height (mm)
Gross Vehicle Weight (kg)
TRANSMISSION
Type

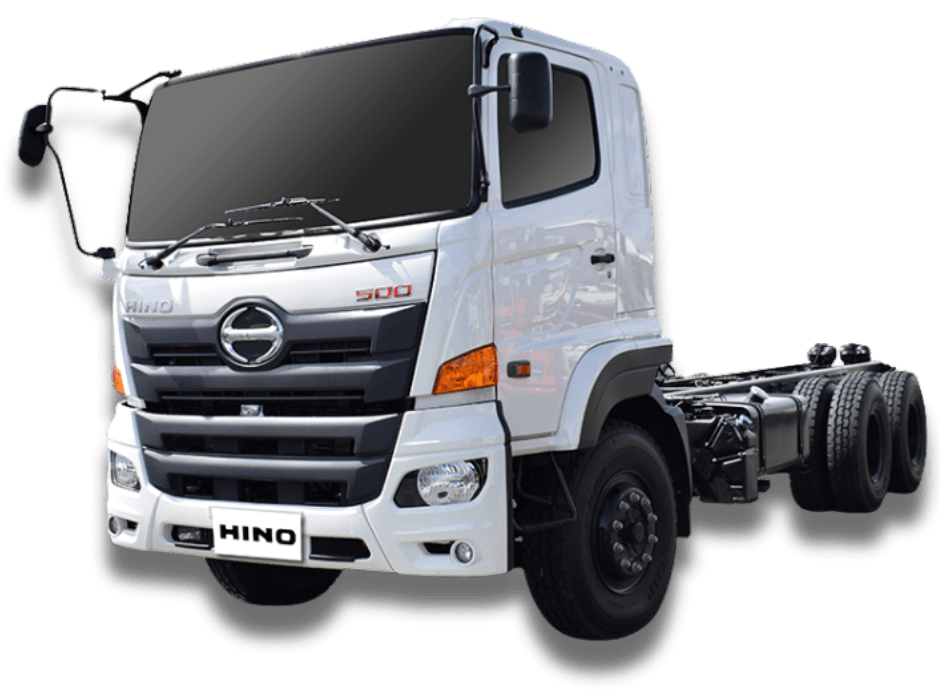

2629 6x4
FM8JR7A
6 x 4 (10W)
280 | 285
824 | 834
4,630 + 1,350
9,485
2,490
2,765
28,000
9-Speed M/T, Direct-drive

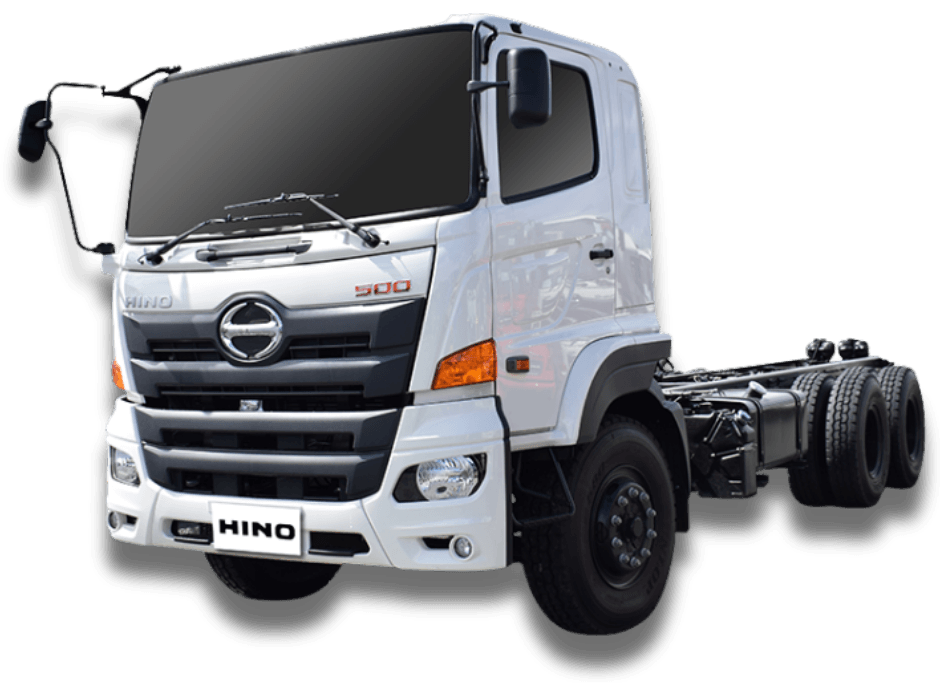

2836
FM1ARZA
6 x 4 (10W)
360 | 1,800
1,463 | 1,100-1,600
4,530 + 1,350
-
2,490
2,905
28,000
9-Speed M/T with Overdrive
2836 Long
FM1ARZA
6 x 4 (10W)
360 | 1,800
1,463 | 1,100-1,600
5,730 + 1,350
11,970
2,490
2,905
28,000
9-Speed M/T with Overdrive
2836 Dump
FM1AL7D
6 x 4 (10W)
350 | 360
1,422 | 1,463
3,480 + 1,350
7,435
2,490
2,910
28,000
9-Speed M/T with Overdrive
TRACTOR SPECIFICATION
MODEL
Model Code
Drive System
ENGINE
Max. Output PS | rpm
Max. Torque N. m | rpm
DIMENSION
Wheelbase (mm)
Length (mm)
Width (mm)
Height (mm)
Gross Vehicle Weight (kg)
Gross Combination Mass (kg)
TRANSMISSION
Type

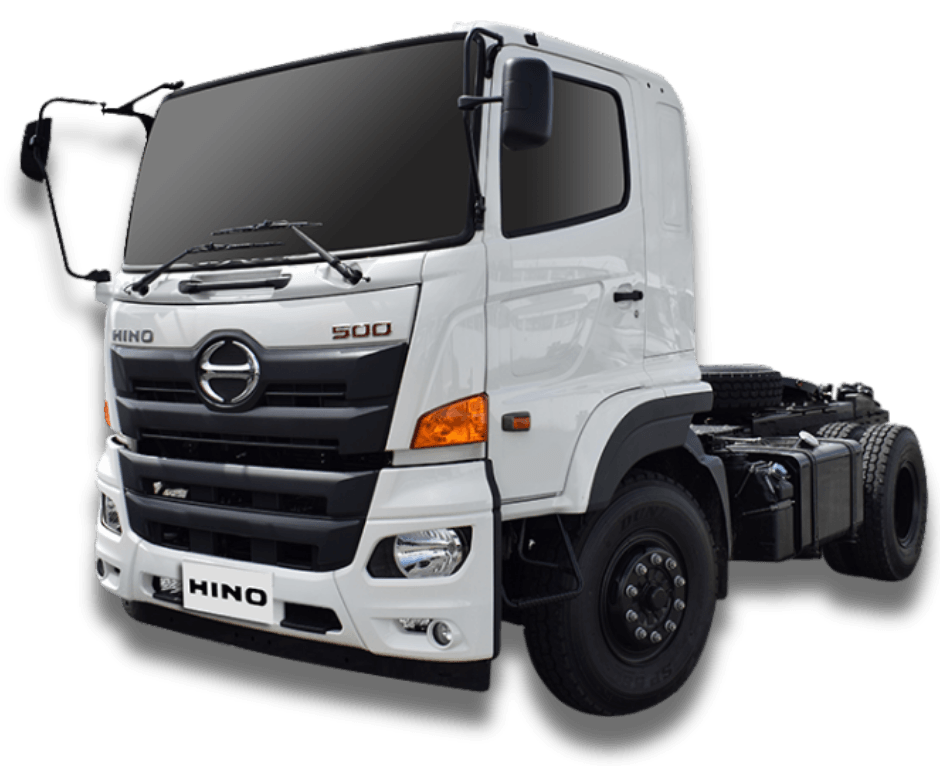

1735 Tractor
SG1AF7B
4 x 2 (6W)
360 | 1,800
1,463| 1,100-1,600
3,630
5,995
2,490
2,890
N/A
32,000
9-Speed M/T with Overdrive

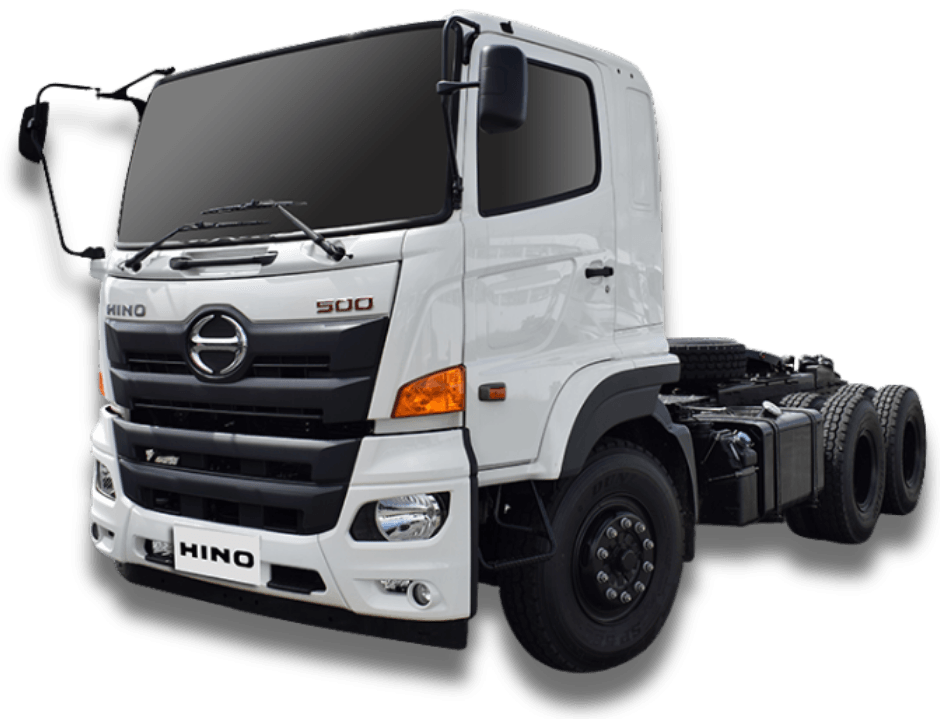

2836 Tractor
FM1A-TH
6 x 4 (10W)
360 | 1,800
1,463| 1,100-1,600
3,480 + 1,350
7,045
2,490
2,890
N/A
50,500
9-Speed M/T with Overdrive
